Axial Ball Bearings: Precision & Performance from CMM Italy

Key Characteristics:

• • Load Direction: Primarily handle axial loads in one or both directions.
• • Design: Available in single-direction (accommodating thrust in one direction) and double-direction (accommodating thrust in both directions) configurations.
• • Components: Typically comprise a shaft washer, a housing washer(s), and a ball and cage assembly.
• • Mounting: Often separable, meaning the washers and ball assembly can be mounted independently, simplifying installation.
• • Speed: Generally suitable for moderate to high speeds, depending on the specific design and lubrication.

Technical Details & Types
CMM Italy offers a variety of axial ball bearing types to meet diverse industrial needs:

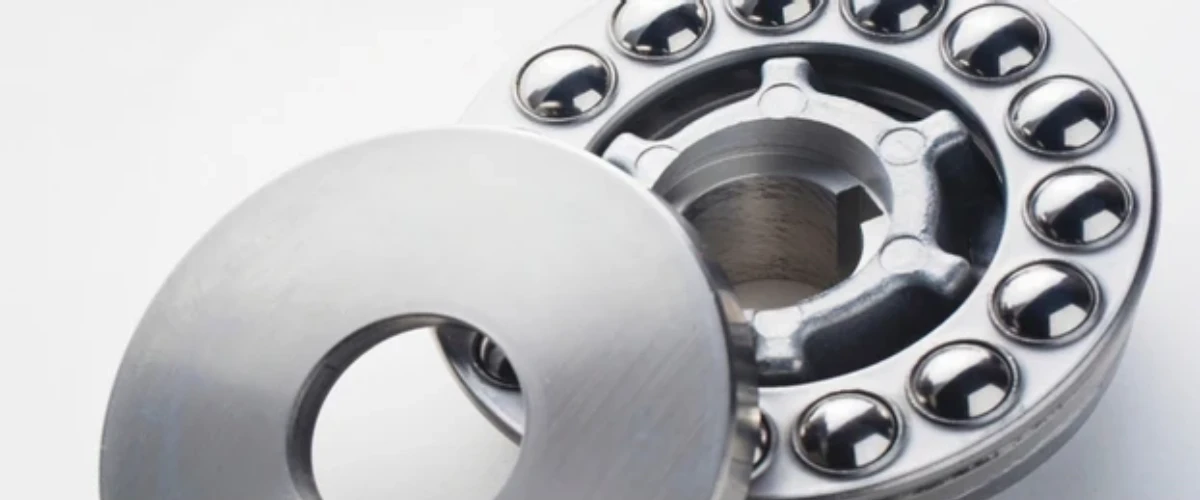

• • Single-Direction Axial Ball Bearings: Composed of two washers (one shaft washer, one housing washer) and a single ball and cage assembly. Ideal for applications where axial load is applied in only one direction.
  • ◦ Example Application: Swivel hooks, vertical pump shafts.
• • Double-Direction Axial Ball Bearings: Feature a central shaft washer, two housing washers, and two ball and cage assemblies. Designed to accommodate axial loads in both directions.
  • ◦ Example Application: Machine tool spindles, automotive steering gears.

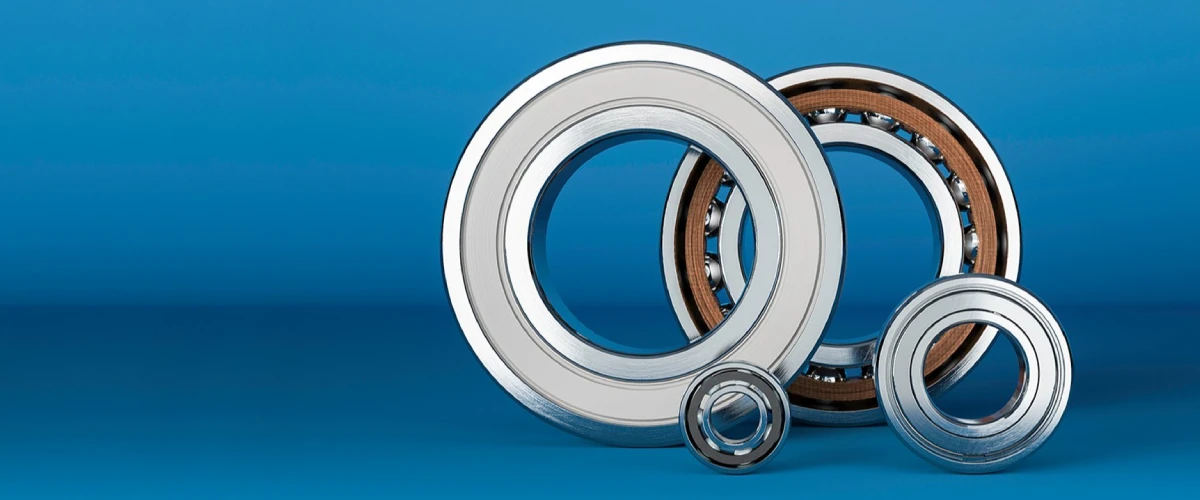

• • Angular Contact Axial Ball Bearings: A specialized type designed to accommodate both axial and radial loads, though primarily for axial forces. They are often used in pairs.
  • ◦ Example Application: Precision machine spindles, rotary tables.
• • Miniature Axial Ball Bearings: Smaller versions used in compact designs where space is limited, often found in precision instruments.

Materials & Precision:
CMM Italy's axial ball bearings are manufactured using high-grade bearing steel (e.g., AISI 52100 / 100Cr6) for optimal hardness, wear resistance, and fatigue life. We adhere to strict precision standards (e.g., ABEC grades) to ensure smooth operation, minimal friction, and extended service life. Our manufacturing processes include precise grinding and superfinishing of raceways to achieve superior surface quality and reduced noise levels.

Applications
The versatility of axial ball bearings makes them indispensable across numerous industries:

• • Machine Tools: Spindles, rotary tables, and feed screws where precise axial positioning is critical.
• • Automotive Industry: Steering gears, clutches, and certain transmission components.
• • Pumps & Compressors: Vertical pumps, mixing equipment where axial forces are present.
• • Lifting & Hoisting Equipment: Cranes, hoists, and swivel hooks.
• • Agricultural Machinery: Various rotating components subjected to axial thrust.
• • Heavy Machinery: Earthmoving equipment, construction machinery.
• • Marine & Offshore: Propeller shafts and other rotary systems.
• • Precision Instruments: Optical equipment, robotics, and medical devices.

Advantages of CMM Italy's Axial Ball Bearings
Choosing CMM Italy for your axial ball bearing needs offers distinct benefits:

• • High Axial Load Capacity: Engineered to efficiently handle significant axial forces.
• • Excellent Rigidity: Provides stable and precise guidance for rotating components.
• • Low Friction: The rolling element design ensures minimal friction, contributing to energy efficiency.
• • High Rotational Accuracy: Manufactured to tight tolerances for precise movement and reduced vibration.
• • Durability & Longevity: Constructed from premium materials and subjected to rigorous quality control for extended service life.
• • Easy Mounting: Separable components simplify the installation process.
• • Customization: CMM Italy can provide tailored solutions to meet specific application requirements, including variations in dimensions, materials, and lubrication.

Potential Considerations (Disadvantages)
While highly effective, it's important to note the specific design limitations of axial ball bearings:

• • Limited Radial Load Capacity: They are not designed to accommodate significant radial loads. If both axial and radial forces are present, a different bearing type or a combination of bearings might be required.
• • Sensitivity to Misalignment: Standard axial ball bearings are sensitive to angular misalignment. For applications with potential misalignment, self-aligning options or careful design considerations are necessary.
• • Space Requirements: In some designs, they can occupy more axial space compared to certain radial bearings.

Product Sheets & Case Studies
For detailed specifications, dimensions, and technical drawings of our standard and specialized axial ball bearings, please refer to our dedicated Product Sheets.
Case Study: Optimizing a Vertical Pump System with CMM Italy Axial Ball Bearings A client in the industrial pumping sector faced premature bearing failure in their vertical pump due to excessive axial thrust. By replacing their existing solution with a custom-designed CMM Italy double-direction axial ball bearing, they achieved a 30% increase in bearing lifespan, reduced maintenance costs, and improved pump efficiency. Our engineers collaborated closely with the client to select the optimal bearing size and material for their specific operating conditions.

Partner with CMM Italy
At CMM Italy, we combine decades of experience with cutting-edge manufacturing technology to deliver axial ball bearings that meet the highest standards of quality and performance. Our commitment to precision, reliability, and customer satisfaction makes us the ideal partner for your industrial bearing needs.

Contact us today to discuss your specific requirements or to request a quote. Our expert team is ready to provide tailored solutions and support.
